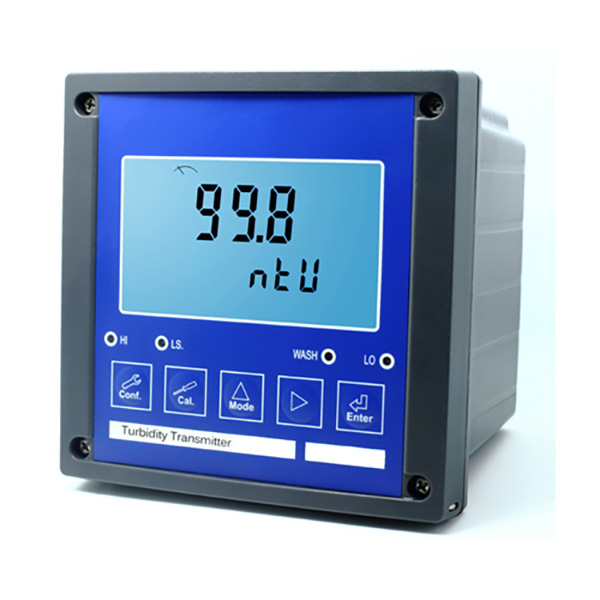

Description
Features
- Measuring items – turbidity, SS, MLSS
- Microprocessor controllers – Reliable Monitoring
- Simple calibration with sensor
- Upper & Lower limit setting – notification available
- Suitable for field ( Wall, Panel and pipe installation IP65)
- 4~20mA , on/off control function provided
- Setting available interval of cleaning
- Solution-ground function to minimize sample interference
- RS485 communication & MODBUS
- Size : 144 x 144x 115 mm
Specifications
|
HT9000 |
||||||
|
Items |
Turbidity / Suspend Solid / MLSS |
|||||
|
Measuring unit |
TURB：NTU ; FTU ; FNU, SS : ppm ; mg/l, MLSS: g/l |
|||||
|
Measuring range |
Depending on sensor |
|||||
|
Resolution |
0.01/0.1/1 AUTO |
|||||
|
Temperature |
0~50°C |
|||||
|
Storage temperature |
-10~70°C |
|||||
|
Display |
LCD display, Auto back light |
|||||
|
Analogue output 1 |
Isolated DC 0/4~20 mA corresponding to Turb/SS, max load 500Ω |
|||||
|
Serial interface |
RS-485(MODBUS RTU) |
|||||
|
Setting |
Contact |
RELAY contact: ON/OFF ，240VAC 0.5A Max. |
||||
|
Activate |
Two sets Hi/Lo programmable, ON/OFF |
|||||
|
Washing |
Output contact，ON 0~9999 seconds / OFF 0~999.9 hour |
|||||
|
Water proof |
IP65 |
|||||
|
Power supply |
100V~240VAC±10%，50/60Hz |
|||||
|
Installation |
Wall / Pipe / Panel |
|||||
|
Dimension |
144 mm * 144 mm * 115 mm (H*W*D) |
|||||
|
Cut Off size |
138 mm * 138 mm (H*W) |
|||||
|
Weight |
0.8Kg |
|||||
Sensor
|
Turbidity |
SS |
MLSS |
||||
|
Sensor model |
TC-100 |
TC-500 |
TC-3000 |
TCS-1000 |
TS-MXS-D |
|
|
Measuring range |
0-100 NTU |
0-500 NTU |
0-3000 NTU |
0-1000 ppm |
0-50 g/L |
|
|
Accuracy |
±3% Full Scale |
|||||
|
Repeatability |
±2% Full Scale |
|||||
|
Power Supply |
DC12V±10% |
DC24V±10% |
||||
|
Washing system |
Auto washing & Every 10 minutes |
|||||
|
Temperature |
0~40℃ |
|||||
|
Material |
SUS 316L, Sapphire glass, Fluorocarbon rubber, EPDM, POM |
|||||
|
Size |
Φ32*163mm |
Φ32*170mm |
Φ348x1460mm |
|||
|
Weight |
930g |
1.1kg |
||||
|
Water proof |
IP 68 |
|||||
|
Length of cable |
10m |
9m |
||||
|
Installation |
Immersion, Pipe, Tank |
|||||
